Compact Excavators

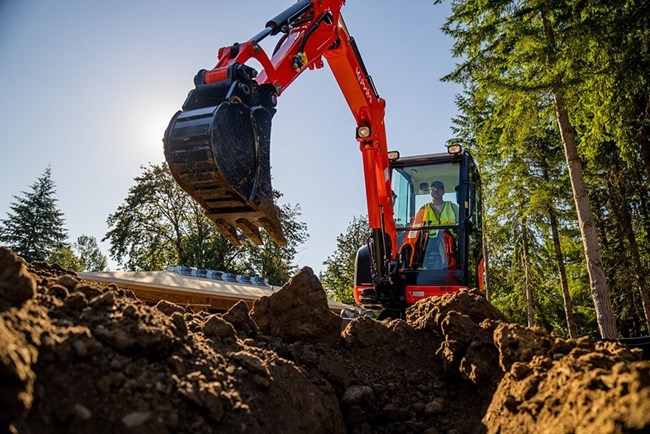

KX030-4
Overview:
The KX030-4 with 24.7 horsepower gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Superior Performance
The KX030-4 gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive.
- Powerful breakout force
- Simultaneous operation
- Thumb bracket and relief valves
- Proportional flow control of auxiliary circuit
- Third-line hydraulic return
MAINTENANCE & SAFETY
With the KX030-4, operators can work with confidence knowing they are protected by the ROPS/OPG on both the open station or optional enclosed cab. Furthermore, the engine compartment is ergonomically organized with easy access to the radiator and engine oil cooler to make routine maintenance and inspections a breeze.
- ROPS/OPG (top guard, level I) canopy and cabin
- Protected cylinder hoses
- Travel lock system
- Swivel negative brake
- Tie down points
SPACIOUS CAB
The large cab offers a wider entrance, greater leg room, more floor space and a luxurious interior to make the work day more comfortable. Operability is greatly enhanced with more easy-to-use features than ever before.
- Large operator's station
- New front meter panel
- Easy Cab entry and exit
- Easy-open front slide window
Deluxe Interior
- Flat foot space
- 2-speed travel switch
- Cup holder
- Suspension seat
Specifications
Specifications
| Engine Model | Engine ModelV1505-BH | |
|---|---|---|
| Horsepower (gross) | Horsepower (gross)24.7 | |
| Displacement (cu. in.) | Displacement (cu. in.)91.4 | |
| Overall Length, ft (mm) | Overall Length, ft (mm)15ft 1.1in (4600) | |
| Overall Height, ft (mm) | Overall Height, ft (mm)7ft 11in (2420) | |
| Overall Width, ft (mm) | Overall Width, ft (mm)4ft 11in (1500) | |
| Min. Ground Clearance, in (mm) | Min. Ground Clearance, in (mm)11.6in (295) | |
| Crawler Length, ft (mm) | Crawler Length, ft (mm)6ft 5.9in (1980) | |
| Pump Capacity, GPM (LPM) | Pump Capacity, GPM (LPM)8.3 (31.5) Piston x 2 / 4.7 (18) Gear x 1 | |
| Auxiliary Hydraulics Flow Rate, GPM (LPM) | Auxiliary Hydraulics Flow Rate, GPM (LPM)13. (49.5) | |
| Bucket Breakout Force, lbs (kgf) | Bucket Breakout Force, lbs (kgf)6924 (3140.7) | |
| Arm Breakout Force, lbs (kgf) | Arm Breakout Force, lbs (kgf)3484 (1580.6) | |
| Traveling Speed: Low, mph (kph) | Traveling Speed: Low, mph (kph)1.7 (2.7) | |
| Traveling Speed: High, mph (kph) | Traveling Speed: High, mph (kph)2.7 (4.3) | |
| Ground Contact Pressure psi, kgf (cm2) | Ground Contact Pressure psi, kgf (cm2)3.9 (0.27) / 4.0 (0.28) | |
| Blade Width, ft (mm) | Blade Width, ft (mm)4ft 11in (1500) | |
| Blade Height, in (mm) | Blade Height, in (mm)11.8in (300) | |
| Hydraulic Oil Reservoir / System, gal (l) | Hydraulic Oil Reservoir / System, gal (l)9.0 (33.9) / 13.7 (52.0) | |
| Fuel Reservoir, gal (l) | Fuel Reservoir, gal (l)12.7 (48) | |
| Operating Weight, lbs (kg) | Operating Weight, lbs (kg)6272 / 6426 (2845 / 2915) |
